- Nominal current
- 10AX
- Nominal voltage
- 250 V
- Number of poles
- 1
- IP degree of protection
- IP20/IP44
- Connection type / Crimp type
- Screw
- Fixing method
- claws / screws
- Mounting method[ETIM]
- flush mounted
- Type of material
- Plastic, PC, Halogen free
- Type of curface
- matt
- EAN code
- 5902787887902
- Color
- black matt
- Width of product
- 77 mm
- Height of product
- 77 mm
- Depth of product
- 42 mm
- Installation depth
- 26 mm
- Model
- Single push button
- RAL (akin)
- RAL 9005
- Product type
- module
- Backlight,
- Built-in, Orientated, Replaceable LED, color: white
- Operating method / Way of operating
- rocker button
- Number of buttons / levers
- 1
- Connection layout
- Single button
- Connectors - operating
- Single normally open connector (NO)
- Functionalities
- with backlight
- Type of switch/push button
- NO
- Series
- Simon 10

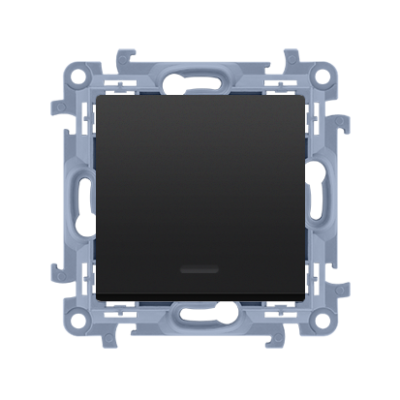

- Product name / Type
- single contact push button illuminated without pictogram
- Notes
- To obtain IP44 splash-proof class an additional frame seal required
- ETIM Class
- EC000029 Push button
- In print/Pictogram
- none
- Surface protection
- varnished
- Outer carton quantity
- 10
- Measure unit
- Qty.
- Individual packaging EAN code
- 5902787887902
- Pack. type
- foil
- Ind. pack. height
- 16 cm
- Ind. pack. width
- 11 cm
- Individual packaging lenght
- 4.7 cm
- Weight of individual packaging with product
- 0.05085 kg
- Outer type
- cardboard box
- Height of outer
- 10 cm
- Outer width
- 19 cm
- Outer lenght
- 23 cm
- Product group
- Switches and sockets
- Product category
- Switches and push buttons
- Product subcategory
- Push button
- Color palette
- black
