- Nominal current
- 10AX
- Nominal voltage
- 250 V
- IP degree of protection
- IP20/IP44
- Connection type / Crimp type
- quick connection
- Fixing method
- claws / screws
- Mounting method[ETIM]
- flush mounted
- Type of material
- Plastic, PC, Halogen free
- Type of curface
- gloss
- Color
- white
- EAN code
- 5902787905965
- Width of product
- 76.3 mm
- Height of product
- 76.3 mm
- Depth of product
- 37.5 mm
- Installation depth
- 28.6 mm
- RAL (akin)
- RAL 9003
- Product type
- module
- Operating method / Way of operating
- rocker button
- Number of buttons / levers
- 1
- Connection layout
- Two way switch
- Product length
- 4 cm
- Type of switch/push button
- two-way
- Series
- Simon 24

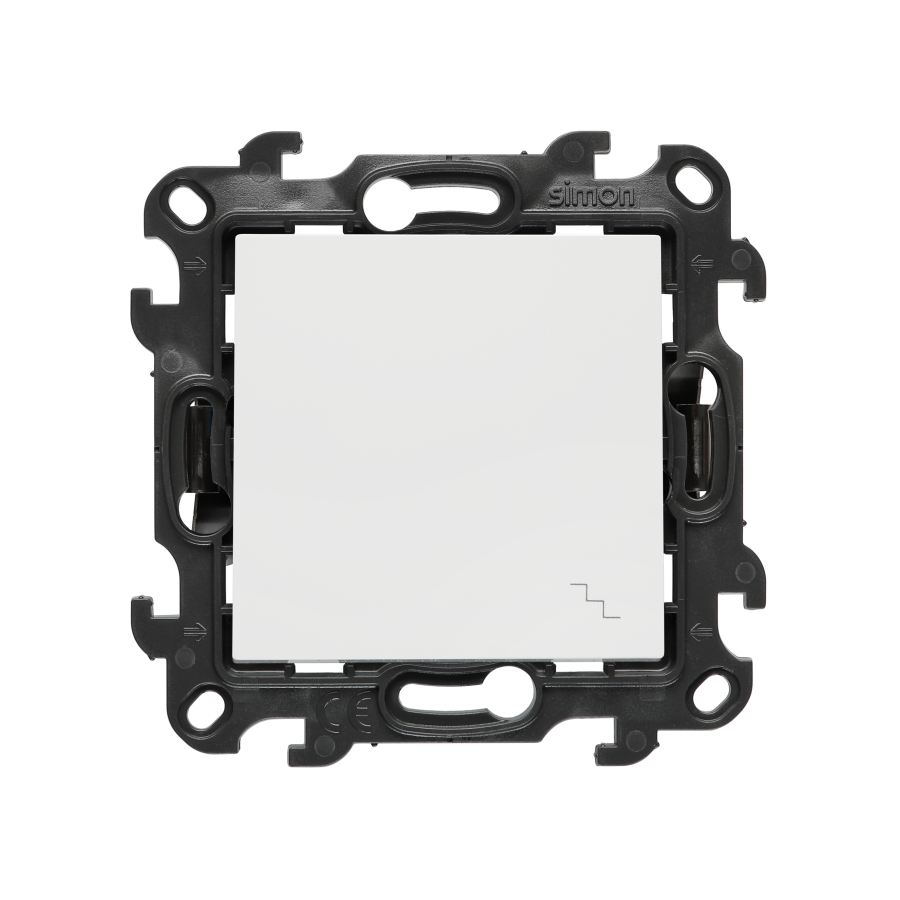

- Product name / Type
- Two-way switch
- Notes
- To obtain IP44 splash-proof class an additional frame seal required
- ETIM Class
- EC001590 Switch
- In print/Pictogram
- "staircase" symbol
- Surface protection
- natural
- Outer carton quantity
- 10
- Measure unit
- Qty.
- Individual packaging EAN code
- 5902787905965
- Pack. type
- foil
- Ind. pack. height
- 16 cm
- Ind. pack. width
- 11 cm
- Individual packaging lenght
- 4.5 cm
- Weight of individual packaging with product
- 0.0475 kg
- Outer type
- cardboard box
- Height of outer
- 10 cm
- Outer width
- 23 cm
- Outer lenght
- 23 cm
- Color palette
- white
